Fresnel 60

Fresnel 60

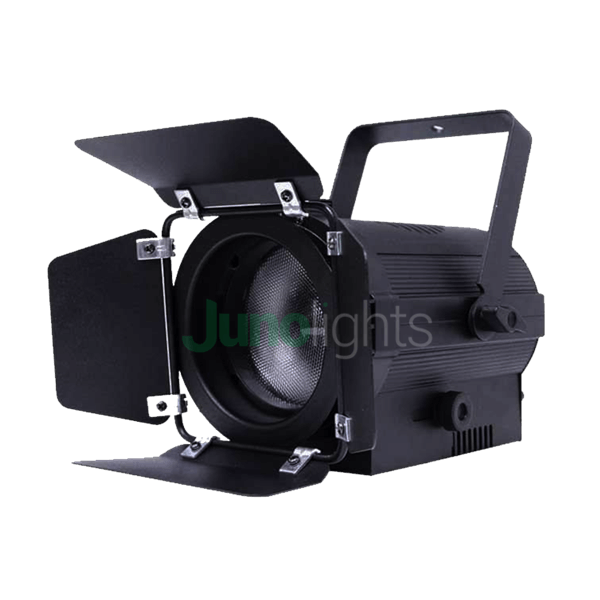

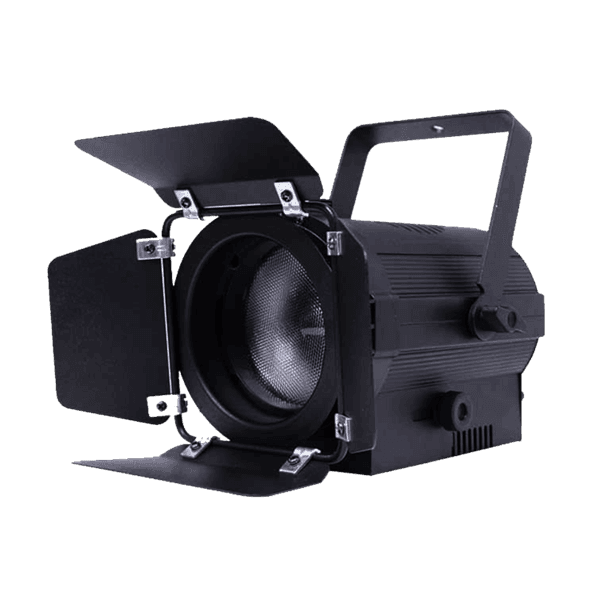

Fresnel 60 is an indoor LED MINI Fresnel spot light with 1pc 60W White COB LED. For the different color temperatures, you can choose WW, CW, or WW+CW 2-IN-1 LEDs. The beam angle can also be adjusted manually from 25° to 50°. It is suitable for TV studios, museums, theatres, and other installations where white light effects are needed.

● 1x60W White COB LEDs
● WW, CW or WW+CW 2-IN-1 optional
● 25° – 50° adjustable zoom Manually
● Smooth Electronic dimming
● Variable Strobe effects
● Auto-programmed effects
● DMX512 and RDM control
● 1, 2 and 3 DMX channels
● LED Display Control panel

In this housing case, we can produce:
1) Fresnel 60 WW: 1x60W Warm White LED
2) Fresnel 60 CW: 1x60W Cool White LED
3) Fresnel 60 DW: 1x60W WW+CW 2-IN-1 LED
4) Fresnel 60 RGBW: 1x60W RGBW 4-IN-1 LED

LIGHT SOURCE
• Light Source: 1x60W Warm White (3200K) COB LEDs
• (Optional): Cool White (5600K) COB LEDs
• (Optional): WW+CW 2-IN-1 COB LEDs (3200K-5600K)
• LED Lifespan: 50000 Hours

OPTICS
• Beam Angle: 25° – 50° (Manual Zoom)

ELECTRICAL
• Power Supply: 100-240V ~ 50/60Hz
• Power Consumption: 60W

COLORS
• Warm White, or Cool White color
• 3200K-5600K (WW+CW) color temperature adjustable

DIMMER
• Linear smooth dimming 0~100%

EFFECTS
• Macro effects
• Strobe effect with variable speed

CONSTRUCTIONS
• Housing: Aluminum, Metal
• Cooling: Noiseless fan cooling

CONTROL
• DMX Channels: 1/2/3-CH
• RDM, DMX512, Master/slave, Auto modes

CONNECTIONS
• Power: PowerCON in/out
• DMX: XLR 3-Pin in/out (5-Pin optional)

PHYSICAL
• IP Rating: IP20, Dry locations
• Dimensions: 345 x 155 x 120 mm
• Weight: 3.0 KGs

ACCESSORIES
• Included: Power cable, DMX cable, User Manual
• (Optional): PowerCon Connection Cable;
• (Optional): Clamp or Folding Clamp, Safety Rope
